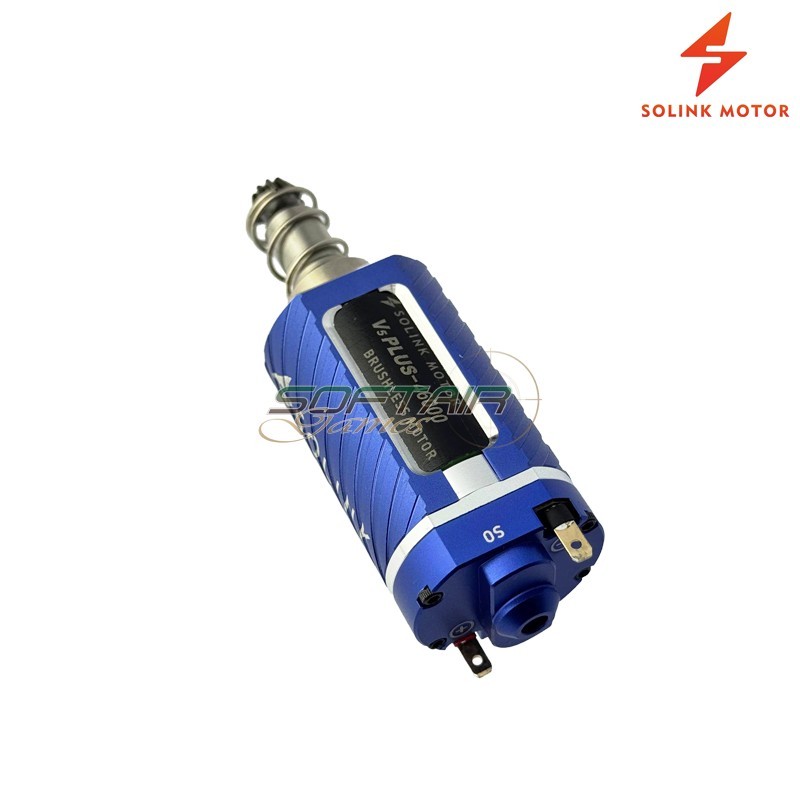

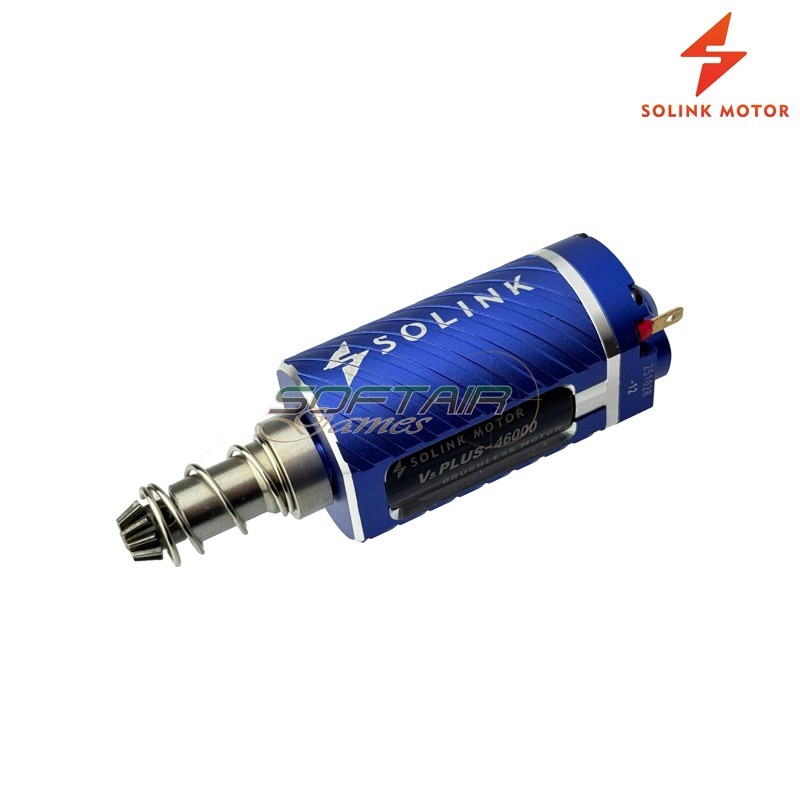

46K Brushless Motor V5 PLUS Solink (W-AdjuPlus-46K)

BRAND SOLINK

The Solink V5 Plus Brushless Motor sets a new benchmark in the industry, offering extremely precise speed adjustment and an advanced design focused on performance, reliability, and full AEG customization.

Key Features

• 1,000 RPM Increment Speed Adjustment: Unique on the market, it allows motor speed adjustment in 1,000 RPM increments (via dedicated digital programming card, not included), with an exceptionally wide operating range from 1,000 to 46,000 RPM. Perfect for users who demand precise and fully customizable performance.
• Integrated Unidirectional Bearing: Prevents reverse motor rotation, eliminating the need for an anti-reversal latch. The result is smoother and quieter gear operation.
• Dedicated Digital Programming Card (NOT INCLUDED): The in-house developed SLC Lite Digital Programming Card enables precise speed and torque adjustment, while also providing battery monitoring functionality.
• Interchangeable Stainless Steel Motor Shaft: Modular design with a replaceable motor shaft, ideal for quick maintenance and upgrades. Made from premium stainless steel, it ensures outstanding strength and reliability even under heavy use.
• Redesigned End Bell: Improved design for better grip compatibility across various gearbox configurations.
• ETU Active Braking Compatible: Supports ETU systems with active braking, as well as emergency stop and overheating protection features.

Technical Specifications

• D-Type pinion gear
• Aluminum motor body
• Operating voltage: 7.4V – 16.8V
• Maximum supported spring: up to M190
