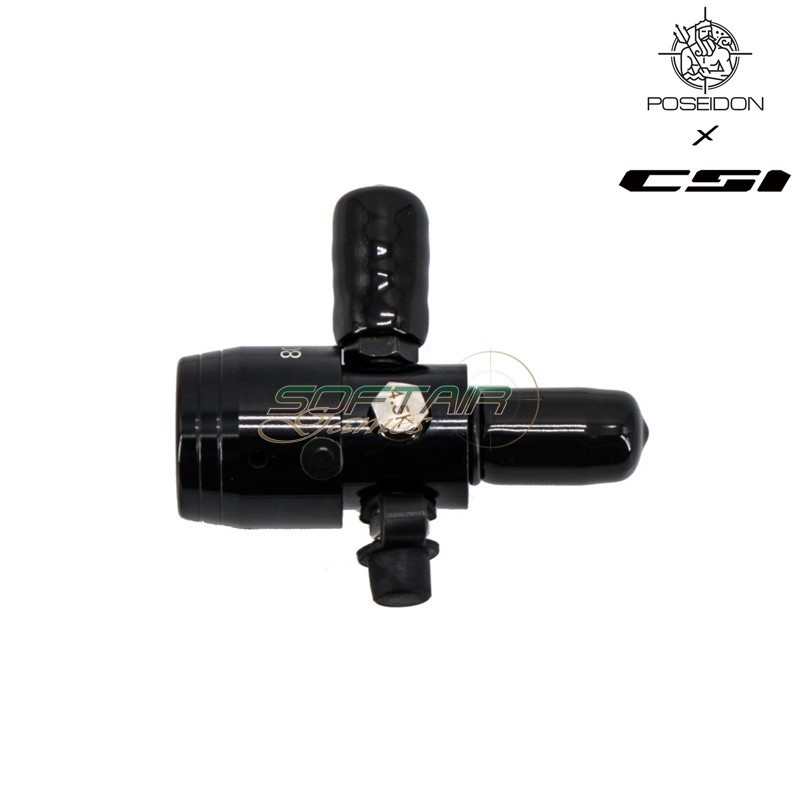

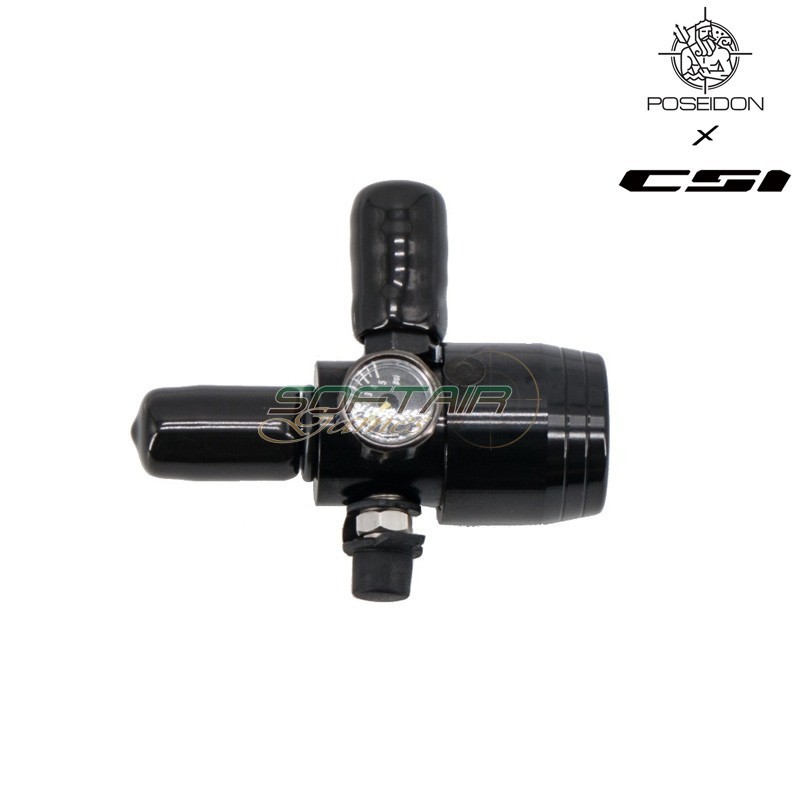

Fixed HPA Regulator 110 PSI Poseidon X CSI (PHPA-001-C)

BRAND POSEIDON X CSI

The Poseidon X CSI PHPA-001-C pressure regulator is designed for HPA systems and reduces the high pressure from the cylinder, up to 4500 PSI / 300 bar, providing a constant 110 PSI output pressure.

It is suitable for latest-generation HPA engines featuring electronic power adjustment and is equipped with a CNC anodized aluminium body, a pressure gauge for monitoring the remaining cylinder pressure, and a standard fill valve with dust cap.

Main features

• Fixed output pressure: 110 PSI
• CNC anodized aluminium body
• 0-5000 PSI gauge for monitoring remaining cylinder pressure
• Standard fill valve with dust cap
• Steel male Foster quick-connect already fitted to the 1/8 NPT outlet
• Protective rubber cap for the quick-connect
• 4500 PSI calibrated burst disc for overpressure protection

Technical specifications

• Model: PHPA-001-C
• Maximum inlet pressure: 4500 PSI / 300 bar
• Output pressure: 110 PSI
• Cylinder connection: 5/8"-18 UNF with O-Ring
• Outlet: 1/8 NPT
• Weight: 180 g

Warnings

• Before installation, verify that the HPA engine is compatible with an 110 PSI supply pressure.
• Use only approved cylinders that are within their certification validity period.
• Do not attempt to modify or disassemble the regulator while under pressure.
