STELLAR THML-3 MINI Thermal Scope T-Eagle (STELLAR-3)

BRAND T-EAGLE

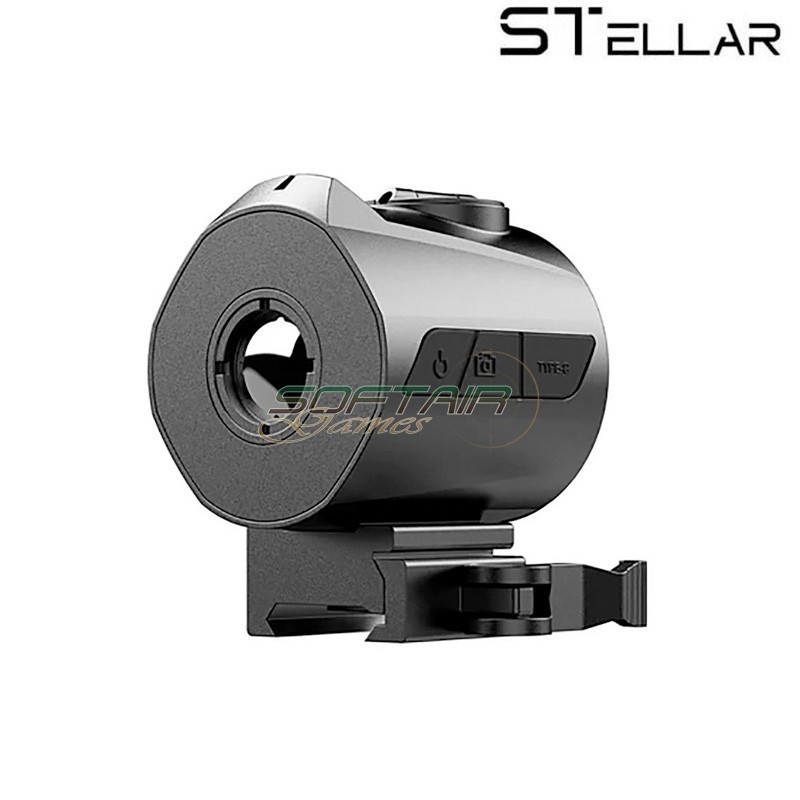

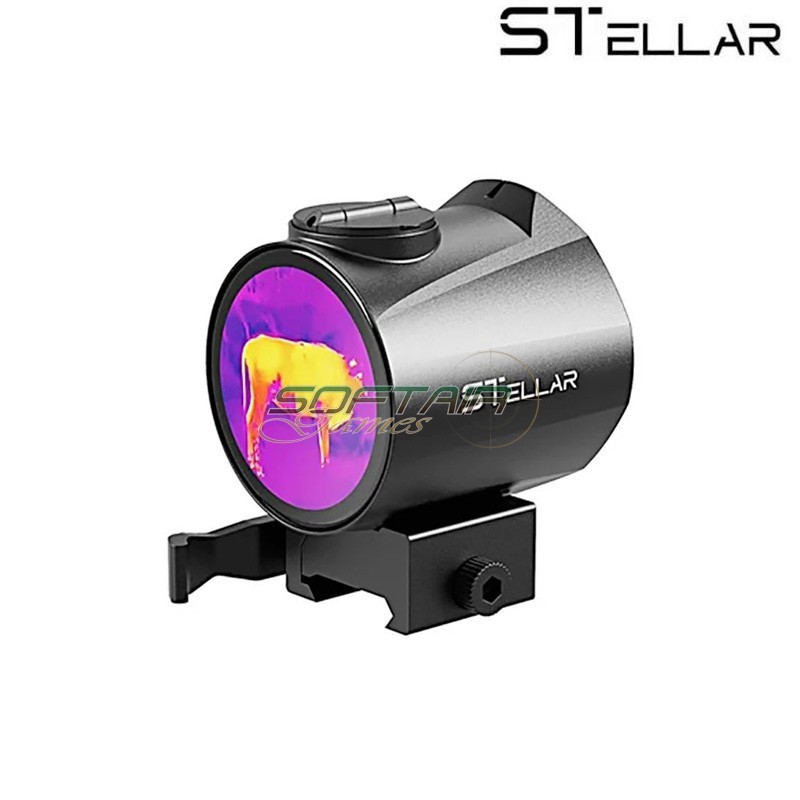

The T-Eagle STELLAR THML-3 MINI is an ultra-compact, fully integrated thermal viewer designed to provide portability, ease of use and essential thermal imaging functions in an extremely small format.

Measuring just 52 × 48 × 51 mm, the device integrates a 1.4-inch OLED touchscreen for intuitive control without external buttons. Its uncooled 256 × 192 thermal detector combined with a 13 mm F0.9 lens provides clear thermal imagery with a detection range of up to 700 metres.

The device also features photo and on-board video recording, with files stored on the integrated EMMC memory. Four viewing palettes are available, including Black Hot, White Hot, Red Hot and Fusion, together with a cursor indicator and adjustable brightness.

Its compact construction is designed for field use, with resistance to impacts up to 1000G / 0.4 ms and an operating temperature range from -20°C to +50°C. The rechargeable 16340 Li-ion battery provides at least 4 hours of operating time. An external compatible charger is required for charging and is supplied free of charge.

Key Features

• Ultra-compact, fully integrated design
• 1.4-inch OLED touchscreen
• 256 × 192 uncooled thermal detector
• 13 mm F0.9 lens
• Detection range up to 700 m
• Photo and video recording
• Built-in EMMC storage
• 4 thermal viewing palettes
• Cursor indicator and adjustable brightness
• Rechargeable 16340 Li-ion battery
• ≥ 4 hours battery life

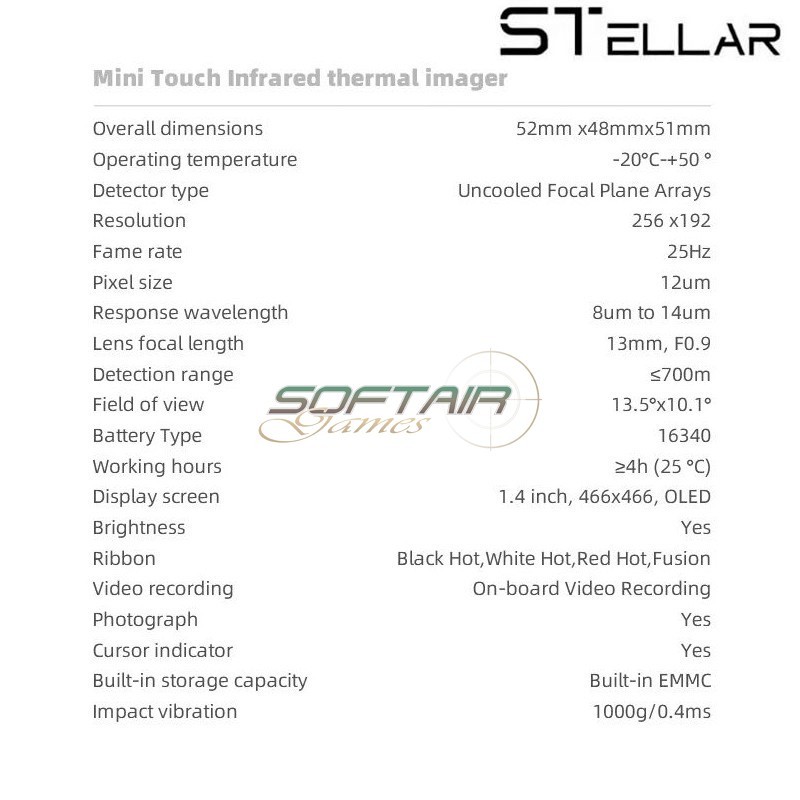

Technical Specifications

• Model: T3-MINI

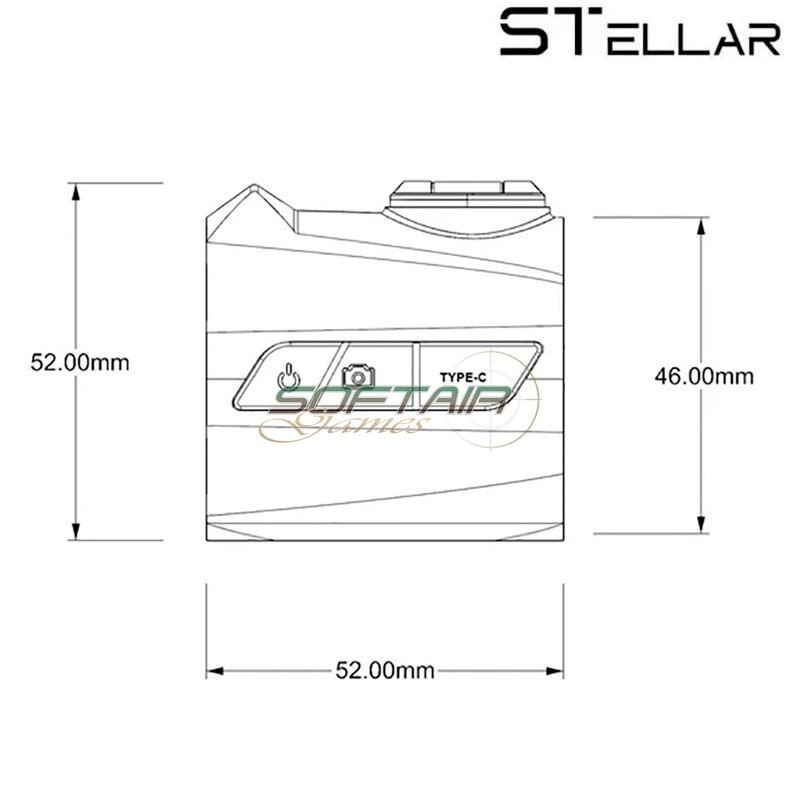

• Dimensions: 52 × 48 × 51 mm
• Detector type: Uncooled FPA
• Resolution: 256 × 192 pixels
• Frame rate: 25 Hz
• Pixel pitch: 12 µm
• Spectral band: 8–14 µm
• Focal length: 13 mm
• Aperture: F0.9
• Field of view: 13.5° × 10.1°
• Display: 1.4-inch OLED touchscreen, 466 × 466 pixels
• Storage: Built-in EMMC
• Battery: Rechargeable 16340 Li-ion
• Battery life: ≥ 4 hours at 25°C
• Shock resistance: 1000G / 0.4 ms
• Operating temperature: -20°C / +50°C

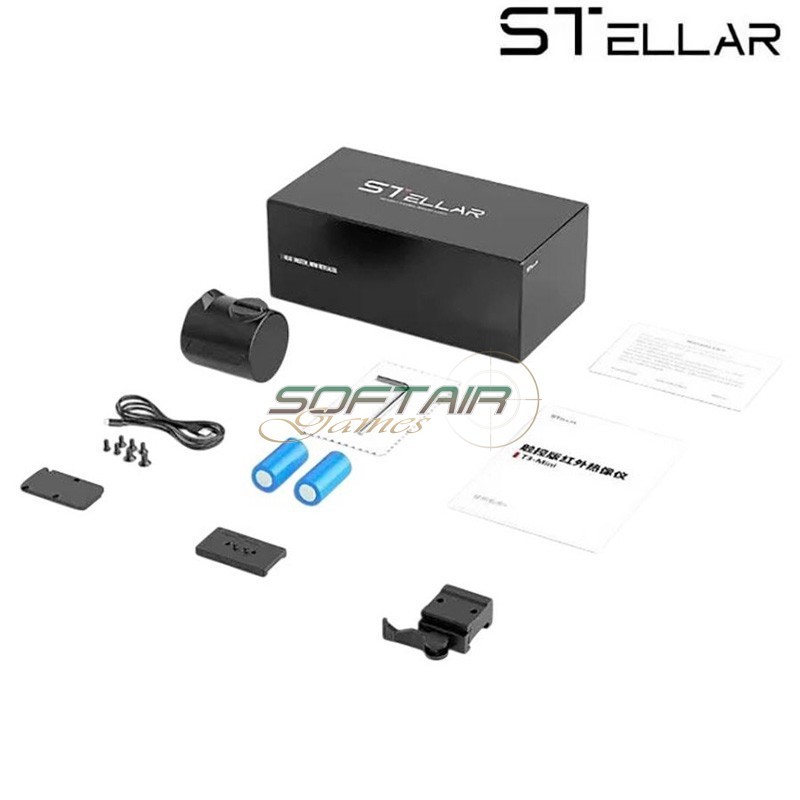

Package Contents

• T-Eagle STELLAR THML-3 MINI thermal viewer
• Battery charger
