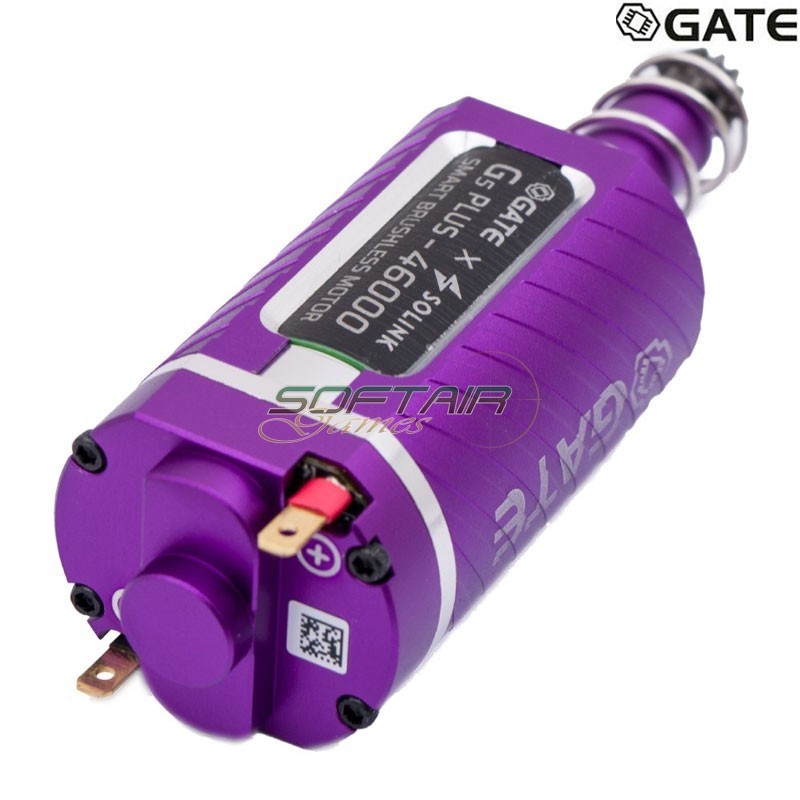

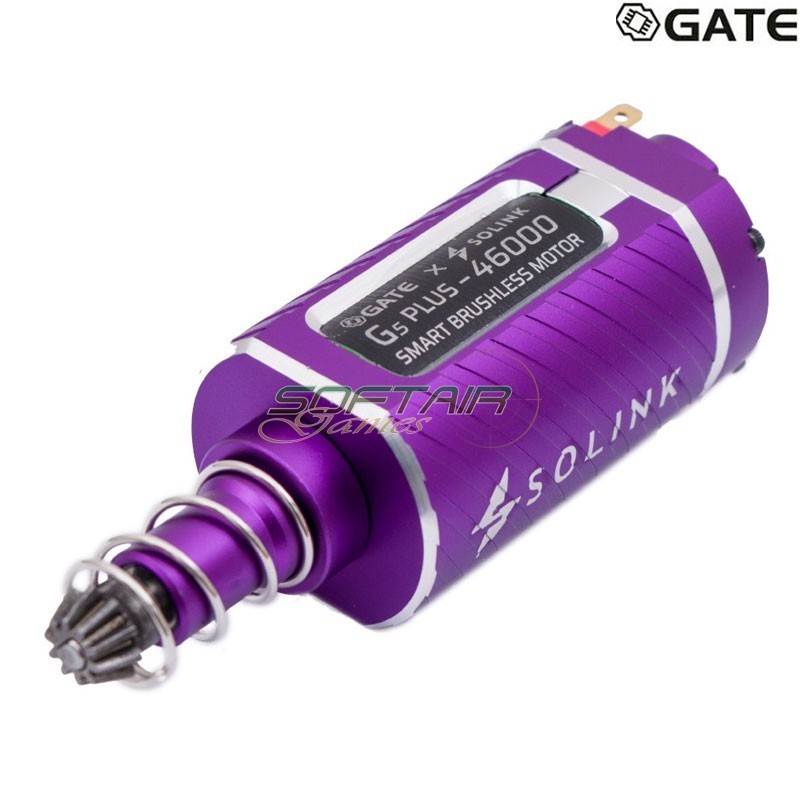

G5 Plus Smart Brushless Motor GATE® (SBM-G5P)

BRAND GATE®

The GATE G5 Plus Smart Brushless is a next-generation intelligent brushless motor designed to deliver extreme performance, maximum efficiency, and full customization.

It is the world’s first brushless motor programmable via the GCS mobile app, exclusively compatible with GATE TITAN II Bluetooth® and ASTER II Bluetooth®.

Using the GCS app, users can adjust multiple motor parameters in real time:

• Adjustable speed from 10,000 to 46,000 RPM
• Torque adjustment
• Soft Start to reduce gearbox stress
• Fast Start for maximum trigger response

The motor features an advanced integrated anti-reversal mechanism, improving:

• operating smoothness
• noise reduction
• pre-cocking consistency
• gearbox performance

The ultra-fast startup provides instant trigger response, while the high efficiency reduces battery consumption and operating temperature.

Its extremely high torque makes the G5 Plus suitable even for the most demanding AEG builds.

Main features

• Programmable smart brushless motor
• Compatible with TITAN II and ASTER II Bluetooth®
• Programmable via GCS app
• Adjustable RPM range 10K - 46K
• Adjustable torque
• Soft Start and Fast Start functions
• Integrated anti-reversal mechanism
• Advanced braking system
• Integrated CNC motor shaft
• D-type pinion gear
• Reinforced motor connectors

Technical specifications

• Operating voltage: 6V - 16.8V
• Dimensions: 88.5 x 29.5 x 25 mm
• Weight: 135 g

No-load performance

• Speed: 45,800 RPM
• Current: 3.2 A

Maximum efficiency performance

• Efficiency: 75.9%
• Speed: 40,987 RPM
• Torque: 500 g/cm
• Current: 24.9 A
• Power: 205 W

Maximum power performance

• Efficiency: 48.4%
• Speed: 22,950 RPM
• Torque: 2334 g/cm
• Current: 105 A
• Power: 519 W
