Cnc Aluminum Hop Up Chamber Mi Sport For M4/m16 Ics Maxx Model (mx-hop006spo)

BRAND MAXX MODEL

Model with BB CATCHING system.
Hop Up MI Group - SPORT Maxx Model.
In aluminum, with CNC machining.
Transverse adjustment ring nut, with maximum precision.
Predisposition for led illuminator.
For M4 / M16 ICS series (CXP / CS4 / EBB) (including older models).

Use a air nozzle with a length from 21.00 to 21.25 mm.

Specifications:
Total length: 51mm.
Total height: 38.8mm.
Outer diameter of the hub (to fit the Gear Box): min 11.5mm - max 12mm.
Outer diameter of the hub (to fit the outer barrel): min 12mm.
Hub internal diameter (suitable for pusher): max 8,3mm.
Outside diameter of the power supply (to adapt to the charger): min. 9,25mm.
Length of the power supply (to adapt to the charger): max 6.25mm.
Material: 6061 aluminum.

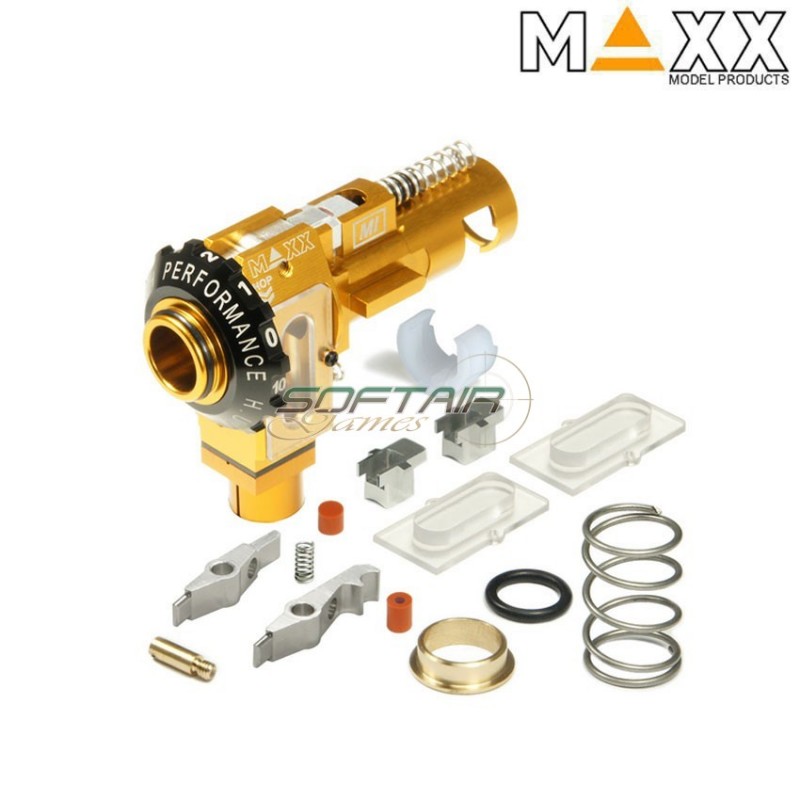

The package includes:
 1 x Aluminum CNC Hopup Chamber MI Sport (with BB Catching System) unit
2 x Strong Clear Vinyl Cover set
1 x CNC Aluminum Standard-Hop Arm
1 x CNC Aluminum R-Hop Arm
1 x Standard Rubber-Hop Nub Damper
1 x Silicone Rubber R-Hop Nub Damper
1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
1 x CNC Brass Threaded Slot Pin
1 x CNC Delrin Locking C-Clip
1 x CNC Barrel Brass Spacer
1 x Brass Spacer Holder Oring
3 x Steel Compression Spring
