Professional alpha v.2 battery charger redox (rdx-009622)

BRAND REDOX

A new improved version of the popular Redox company’s Alpha charger. The Redox Alpha V2 is inter alia equipped with an actualized software ensuring a long and stable operation of the device. Additionally, a big radiator which discharges the heat very efficiently was mounted on the top of the charger. It is possible to change the charging current of the charger and to monitor the voltage of each cell while the process of charging!

Characteristics:
Dimensions: 134 x 86 x 26 mm
Operational voltage: DC 11.0~18.0 V
Output power:
- Maximum charging power 50W
- Maximum discharging power 5W
Charging current: 0.1~5.0A
Discharging current: 0.1~1.0A
Balancing current intensity : 300 mAh/cell
Number of supported NiCD/NiMH cells: 1~15 cells
Number of supported Li-Po/Fe/Ion cells: 1~6 cells
Supported Pb cells : 2~20V
Weight (without wiring):  400 g
Charger’s inbuilt memory: maximum of 5 battery packs
Battery pack cycling function
4 programming buttons

Inbuilt sockets:
- balancer sockets 2s, 3s, 4s, 5s, 6s
- Gold 4 mm  sockets,
- Jack type socket (powered by 12V DC)
- an optional temperature sensor socket,

Redox 12V / 5A power supply:
This device is a perfect home power source for micro-processor chargers. We recommend it always when it is required to provide a stable and secure power source that has got a stabilized amperage ( constant 5A current ) needed for the operation of 12V powered chargers in home conditions. Thanks to the use of the modern production technology the dimensions and the weight of the charger were minimized thanks to which we gain an extremely handy and compact product.

Power supply characteristics:
Input: 100~265V / 47/60 Hz AC
Output : stabilized 12V
Current : constant 5A
Dimensions : 125 x 57 x 31,5 mm
Weight ( wiring included) : 313 g

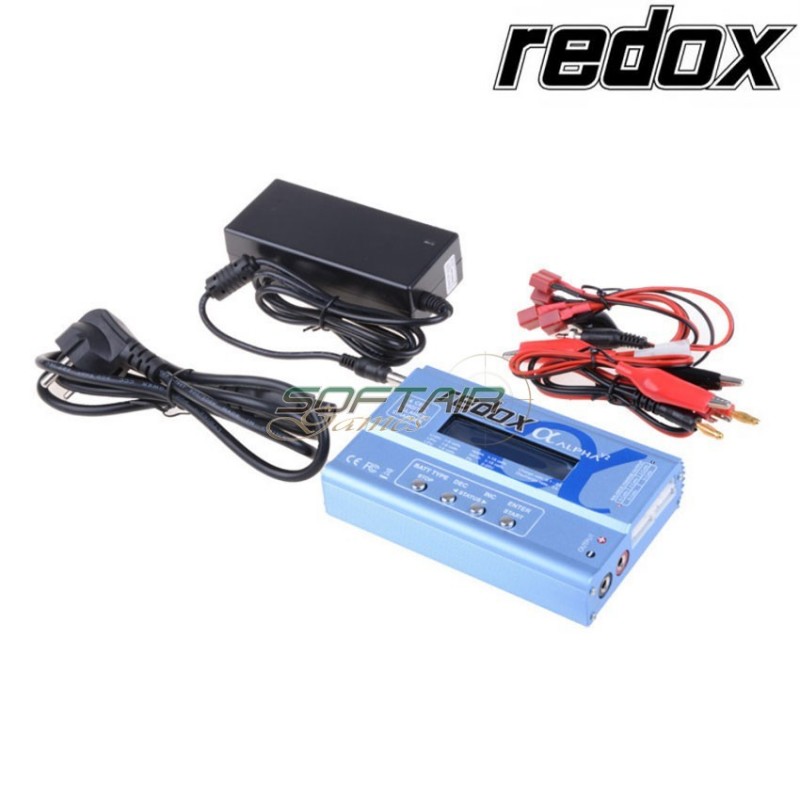

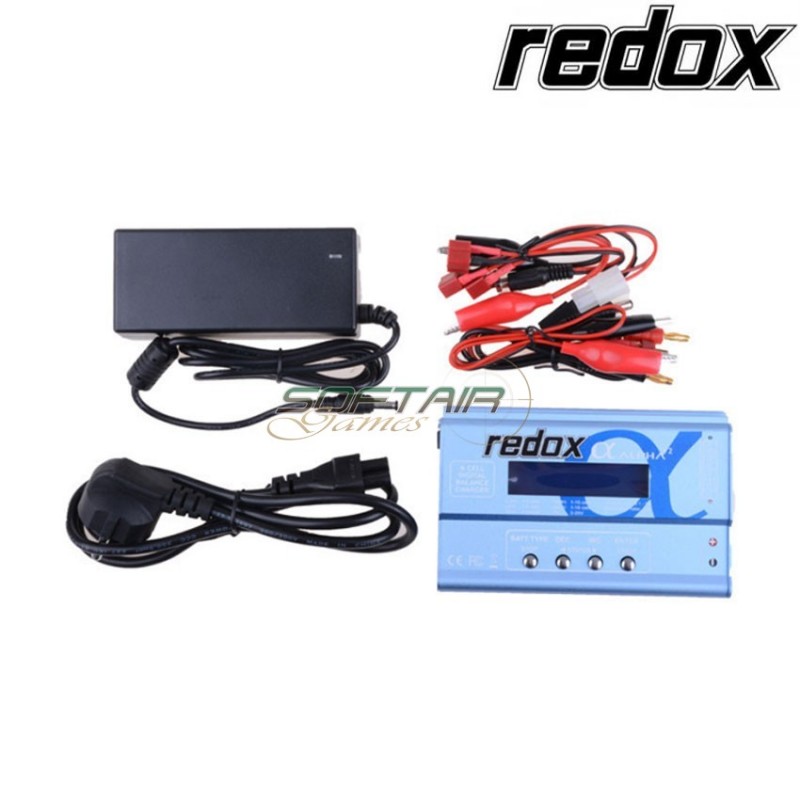

The set includes:
the Redox Alpha V2  charger,
the power supply
a 12V DC power wire (Jack - crocodiles),
1 x Gold 4 mm Adapter - DEAN  plug,
Additional extending adapters for the Gold 4 mm adapter -  DEAN plugs:
1 x DEAN adapter plug - Crocodiles
1 x DEAN adapter plug – Servo socket (FUTABA type)
1 x DEAN adapter plug – spark plug dummy  (for charging 1,5V clips)
1 x DEAN adapter plug – BEC socket
