LAB PEQ LA5-A Black FMA (fma-tb1311-bk)

MARCA FMA

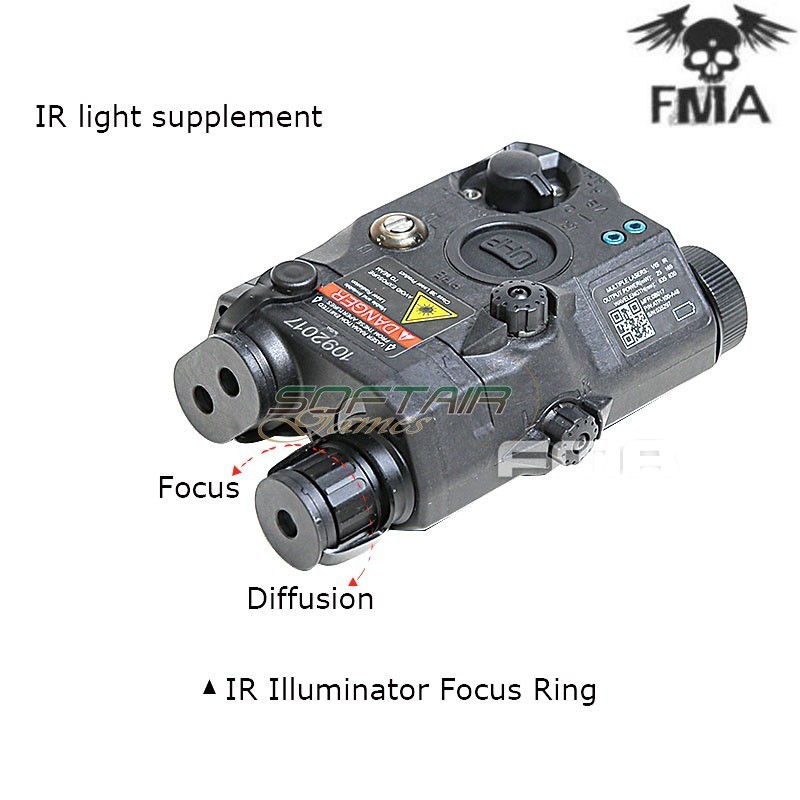

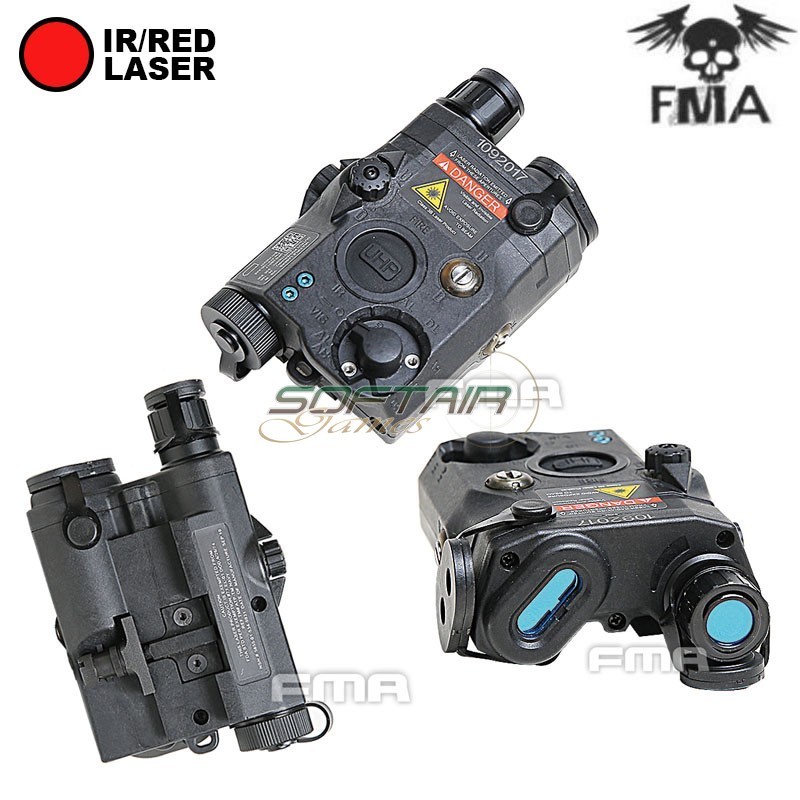

RED / IR Lasers & IR Illuminator
Model PEQ LA5-A.
Color BLACK.
For 20mm slides.
Reinforced polymer material.

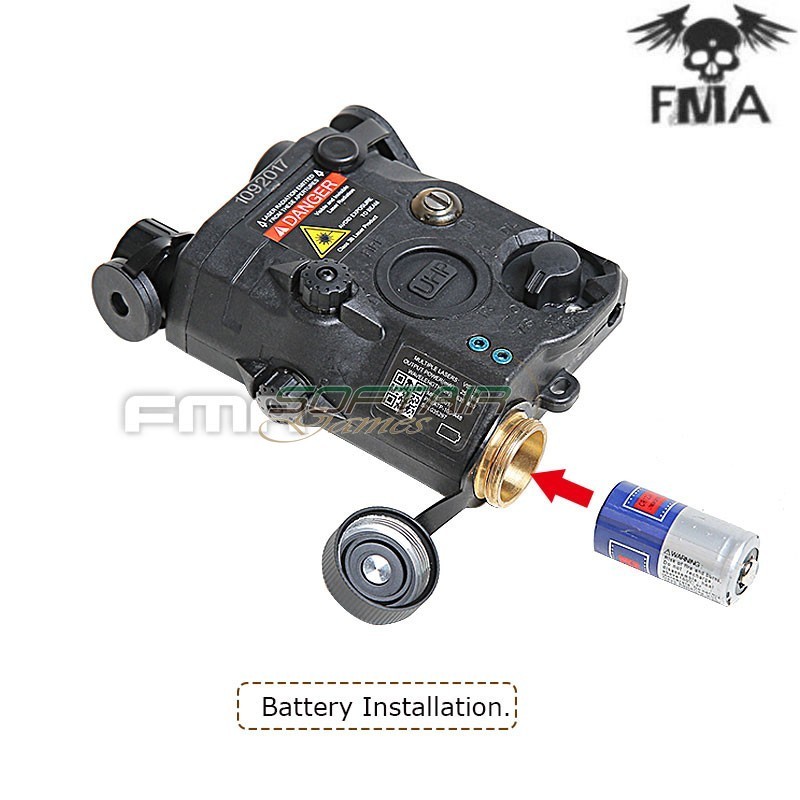

Powered by 1x CR123 battery (NOT INCLUDED).
Stickers included.
Remote button included.
Weight 205gr.

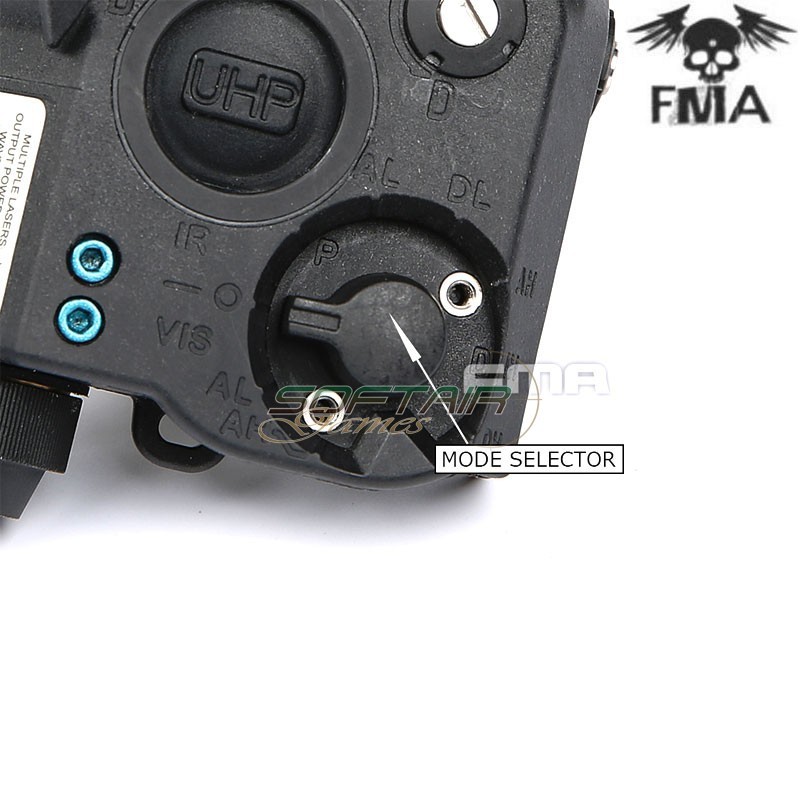

Mode Selector PEQ LA5-A Button Switch

AH -- Keep laser on (Strong). Single Click interrupted light, double click, keep lase on. (Power 9.0 mw)
AL -- Keep laser on (Weak). Single Click interrupted light, double click, keep flashing light on. (Power 2.57 mw)
O -- Turn off
P -- Changed to Keep Flishing on (Power 0.64 mw)
IR -- Switch to IR Function
AL-IR -- (Weak light on the Right) On, Single click interrupted light, DOuble click, keep flashing light on.
DL -- IR Assist lamp On (Left) and (Right), IR assist lamp Weakly on, IR On (Weak light). Single Click interrupted light, Double click, keep flashing light on.
AH -- IR On (Strong light on the Righ), Single Click interrupted light, Double click, keep flashing light on. (Power 32.4 mw)
IH -- IR Assist lamp On (Left) and (Right), IR assist lamp Strongly on, IR On (Weak light). Single Click interrupted light, Double click, keep flashing light on.
DH -- IR Assist lamp On (Left) and (Right), IR assist lamp Strongly on, IR On (Strong light). SIngle Click interrupted light, Double click, keep flashing light on.

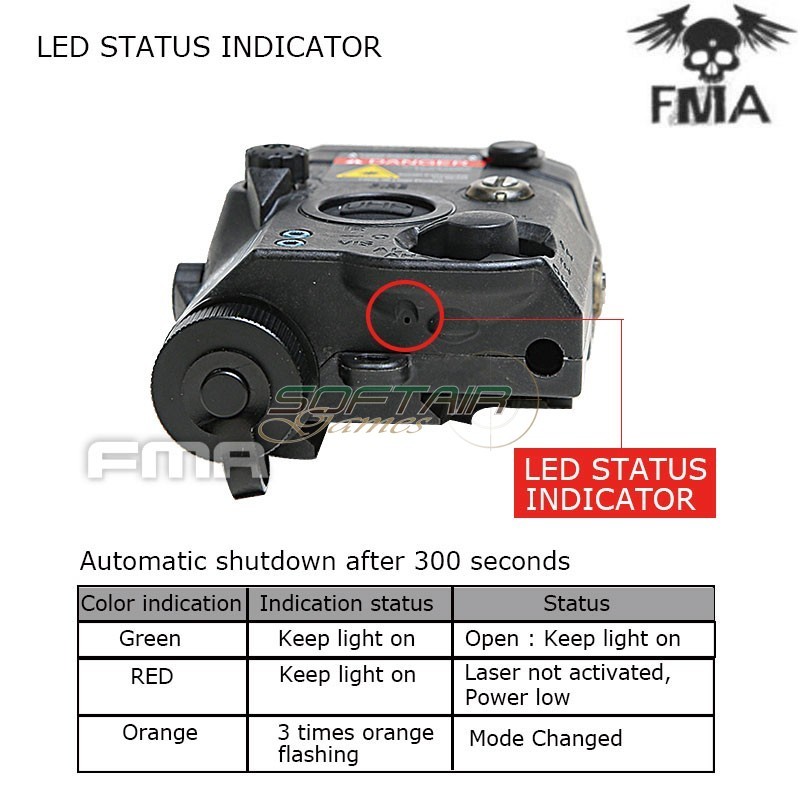

Led Status Indicator

Automatic Shutdown after 300 second
