Mini Li-Po/Li-Fe/Ni-MH USB-C Battery Charger Specna Arms (SPE-07-043799)

BRAND SPECNA ARMS

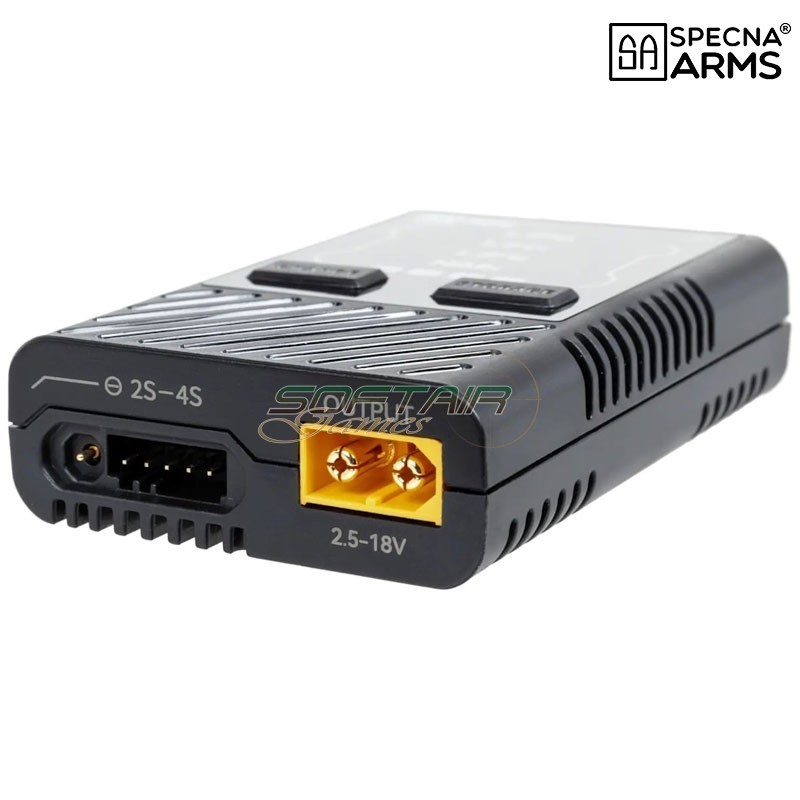

The Specna Arms Mini Charger is a compact and lightweight USB-C powered battery charger. It is designed for Genesis G-Tech batteries as well as standard batteries available on the market.

When a G-Tech battery is connected, the charger detects it after approximately 5 seconds and automatically selects the most suitable charging mode. With standard batteries, the battery type and charging mode must be selected manually.

Main Features

• Compact and lightweight design.
• Compatible with Genesis G-Tech and standard batteries.
• Automatic detection of G-Tech batteries.
• Automatic charging mode selection for G-Tech batteries.
• Manual battery type and charging mode selection for standard batteries.
• Supports Li-Po 2-4S, LiHV and LiFe batteries.
• Supports Ni-MH 2-12S batteries.
• Abnormal battery voltage alarm.

Technical Specifications

• Maximum charging power: 60 W
• Charging current: 1-5 A (max. 5 A, automatic adjustment)
• Maximum storage mode power: 3 W discharge, 60 W charge
• Input voltage: 5-20 V max.
• Input current: DC 3 A
• Balance current: 0.4 A/cell × 2

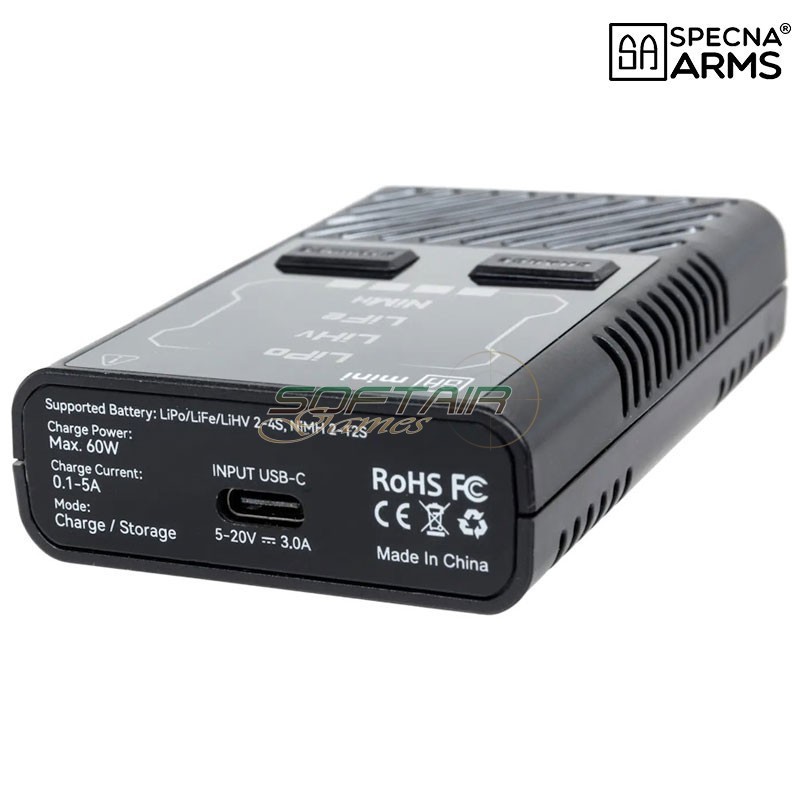

• Input port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5 V/2.4 A
• Does not support 5 V/1 A power adapters.
• Supported battery types: LiPo/LiHV/LiFe (2-4S), Ni-MH (2-12S)
• Operating temperature: 0 °C to 40 °C
• Storage temperature: -20 °C to 60 °C

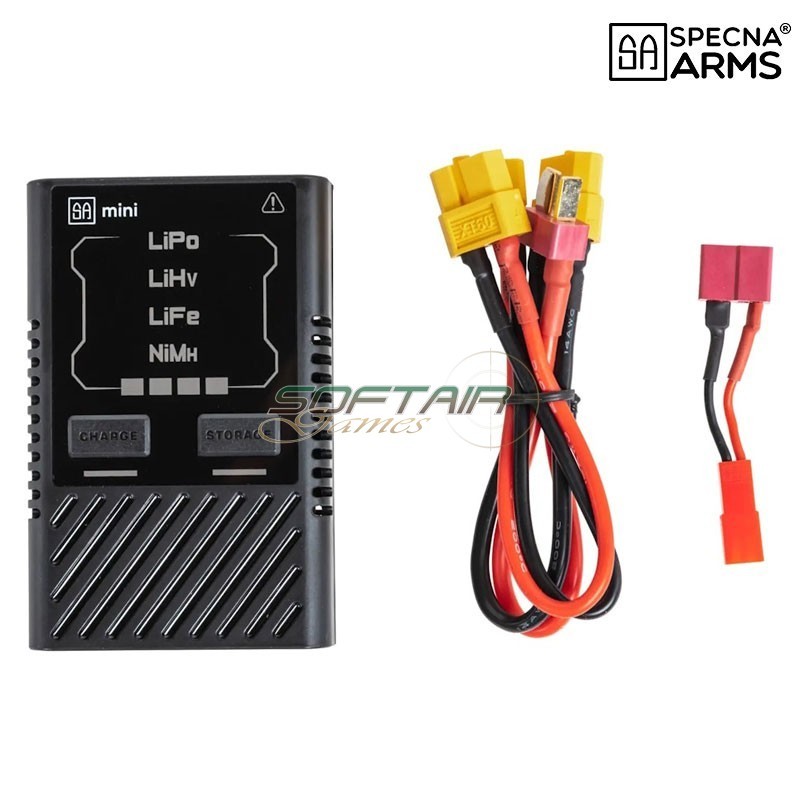

Package Contents

• Battery charger
• Power adapter cable and USB-C cable
• XT60 female to EC3 male cable
• XT60 female to Deans (T) male cable
• Instruction manual

Notes

• 230V power adapter is not included.

Usage Guidelines

• Disconnect the battery from the charger once charging is complete.
